By Rick Schultz
Last time we determined correct length of caliper mounting bolts and placed an order. To get everyone back up to speed, the bolts came in!
Rear brake caliper is now installed, hydraulic cable run but not hooked up yet.
It’s coming together pretty quickly now.
Next items on the agenda are
- Install the chain
- hook up the hydraulic lines
- bleed brakes
- tune the derailleurs
- install Favero Assioma duo power meter pedals
https://cycling.favero.com/assioma - wrap handlebars
- pump up tires
- RIDE!
But first, the chain. Since we don’t have a chain to check, let’s calculate the length.
There are two methods, (a) simple equation and (b) rigorous equation.
SIMPLE EQUATION: L = 2(C) + (F/4+R/4+1)
Where
C = chain stay length = 16-3/8”
F = front large chainring = 52
R = largest rear cog = 34
L = 2(16.375) + (52/4 + 34/4 +1)
= 32.75 + 13 + 8.5 +1 = 55.25 or rounded to 55”
RIGEROUS EQUATION: 1 + (0.25*(F+R)) + 2* SQRT (C2 + (0.0796 * [F-R])2)
1 + (21.5) + 2* SQRT (270.2)
1+ (21.5) + 2*16.44 = 55.38” or rounded to 55”
Looks like chain needs to be 55”

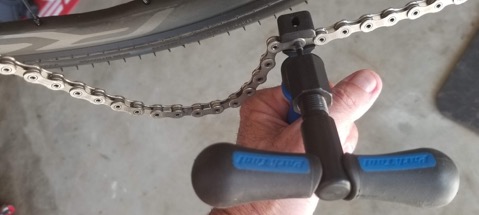

Chain ‘cut’ to 55” and installed onto bike

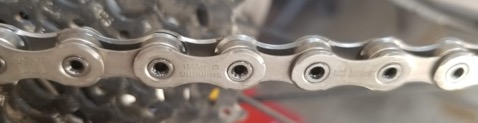

Don’t forget to check if chain is omni-directional like this Shimano Dura-Ace chain is. If using this chain, lettering points towards the outside.
So, what’s next? You would be correct if you said adjust the front and rear derailleurs.

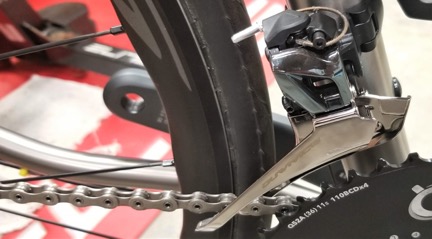

The FD is adjusted using limit screws and angular rotation, in order
- No cable tension – alignment to the chainring
- No cable tension – outside plate to big chainring
- Adjust cable tension
- Using shifter buttons, adjust LOW / HIGH limit screws accordingly

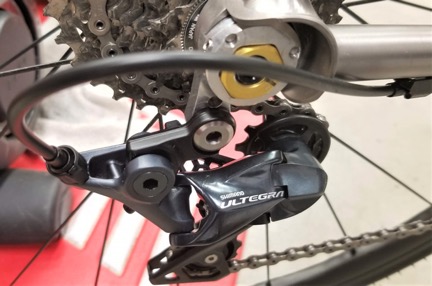

Lastly, let’s hook up and adjust the Read Derailleur
- Adjust cable tension (I used Park 3rd hand to pull firmly on cable.)
- Adjust End-Bolt
- Adjust HIGH/LOW (Or as Shimano calls them – Stroke Adjusting) bolts
Since I previously trued the hanger, this adjustment was super easy. Actually, with Shimano’s latest derailleurs, it literally took me 5 minutes to adjust both derailleurs.
Chain is the perfect length and this drivetrain will never be cleaner! Appreciate it now.
Next time, completing the hydraulic brake connections.
